How to Sharpen MagnaCut Steel: Angles, Grits, and Technique

Introduction

CPM MagnaCut is a powder-metallurgy stainless knife steel designed by metallurgist Larrin Thomas to combine high toughness, corrosion resistance, and edge retention. Unlike many high-wear stainless steels, MagnaCut achieves its properties with relatively low total carbide volume and a fine distribution of hard vanadium- and niobium-rich carbides. This structure helps make MagnaCut more manageable to sharpen than its premium "super steel" reputation might suggest.

Sharpening MagnaCut does not require a fundamentally different technique from sharpening other quality knife steels. The key is to choose an abrasive appropriate for the work, maintain a consistent angle, completely reach the apex, refine the edge to the desired finish, and remove the burr without rounding the apex.

Is MagnaCut Steel Difficult to Sharpen?

MagnaCut is not exceptionally difficult to sharpen when it has been properly heat treated and suitable abrasives are used. Its relatively low carbide volume and fine carbide structure help make sharpening and deburring manageable despite its high performance.

MagnaCut uses a powder-metallurgy microstructure containing fine vanadium- and niobium-rich carbides rather than relying heavily on chromium carbides. Niagara Specialty Metals reports approximately 8% total carbide volume, compared with about 13% for CPM S35VN and 22% for CPM S90V.

Knife Steel Nerds also reports positive sharpening feedback from knifemakers, including relatively straightforward bevel formation and burr removal. MagnaCut tested around 62 HRC removed material more readily than an example around 65 HRC. Higher hardness can increase the effort required for material removal, but sharpening speed also depends on abrasive choice, carbide structure, edge geometry, and how much steel must be removed.

This is an important distinction: good edge retention does not automatically mean extreme sharpening difficulty. The benefit of MagnaCut's metallurgy is a strong balance of properties; the flip side is that harder examples and major reprofiling jobs still demand an efficient abrasive and good sharpening technique.

Do You Need Diamond or CBN Stones to Sharpen MagnaCut?

No. Diamond and CBN are excellent abrasives for MagnaCut, but they are not mandatory. Quality conventional abrasives, including aluminum oxide stones, can also sharpen MagnaCut successfully.

Larrin Thomas reports successfully sharpening MagnaCut using aluminum-oxide Shapton Glass stones, demonstrating that diamond is not an absolute requirement. Diamond and cubic boron nitride (CBN) nevertheless become attractive when significant material must be removed.

For example, reprofiling a thick factory bevel or repairing a damaged edge can be considerably more efficient with an aggressive abrasive. Niagara's technical data also references CBN and SG-type alumina for grinding CPM steels.

The cost of faster stock removal is a rougher initial surface when a coarse abrasive is used. Those deeper scratches require additional refinement if you want a highly polished bevel. Conventional stones may cut more slowly during heavy reprofiling but can provide excellent feedback and refinement. Therefore, abrasive choice should depend on the amount of steel you need to remove rather than on the assumption that MagnaCut always requires diamond.

What Is the Best Sharpening Angle for MagnaCut?

There is no single ideal sharpening angle for every MagnaCut knife. The appropriate angle depends on blade geometry, hardness, intended cutting tasks, factory geometry, and the amount of edge stability required.

Lower edge angles generally increase cutting efficiency because less material must pass through the material being cut. Controlled testing has demonstrated substantial performance benefits from reducing edge angle. MagnaCut's combination of toughness and hardness can support relatively thin edge geometry, but the steel name alone cannot determine how acute a particular knife should be.

A thin kitchen slicer and a hard-use outdoor knife place very different demands on their edges. Preserving the factory angle is therefore a reasonable starting point when the knife already cuts well and the edge remains stable.

The engineering compromise is straightforward: decreasing the angle improves cutting efficiency but leaves less material supporting the apex. Increasing it provides more geometric support but makes the edge thicker and generally reduces cutting efficiency.

What Grit Should You Use to Sharpen MagnaCut?

Choose the starting grit according to the condition of the edge rather than simply because the knife is made from MagnaCut. Coarse abrasives are appropriate for repair and reprofiling, medium abrasives for normal sharpening, and finer abrasives for refinement or light touch-ups.

A chipped edge, major bevel correction, or substantial angle change requires significant steel removal. Starting coarse makes this work faster. The disadvantage is a deeper scratch pattern that requires additional work if a refined bevel is desired.

A normally dull but undamaged MagnaCut knife usually does not require such aggressive material removal. Starting with a medium abrasive can avoid unnecessarily removing steel while still allowing the bevels to reach the apex efficiently. If the edge has only lost some bite, a fine abrasive may be sufficient.

There is also no need to use every available grit. Each additional abrasive can improve surface refinement, but it adds sharpening time and another opportunity to introduce angle variation. A short, deliberate progression is usually more useful for a working knife than chasing a mirror polish without a functional reason.

Should You Use a Toothy or Polished Edge on MagnaCut?

A toothier MagnaCut edge generally favors aggressive slicing, while greater refinement can favor smooth push cutting. Neither finish is universally better; choose the finishing grit according to what the knife actually cuts.

Relatively coarse edge finishes have performed very well in controlled slicing edge-retention testing. This makes some microscopic toothiness useful for an EDC or utility knife regularly cutting cardboard, rope, packaging, and similar materials.

A more refined edge may be preferable when clean push cutting is the priority. Kitchen knives can also benefit from refinement, although the ideal finish depends heavily on what and how the knife cuts.

Stopping relatively coarse preserves more slicing aggression but sacrifices some refinement. Continuing to increasingly fine abrasives produces a smoother bevel and apex but costs additional time and can reduce the micro-serrated character useful during draw cutting. A mirror-polished bevel is therefore an aesthetic or specialized functional choice, not an automatic upgrade.

How Do You Sharpen a MagnaCut Knife Step by Step?

Inspect the edge, select the appropriate angle and starting abrasive, then sharpen until both bevels meet completely at the apex. Refine the edge with progressively lighter strokes and remove the remaining burr before testing sharpness.

First, examine the cutting edge for chips, flat spots, uneven bevels, and light reflecting from dull areas. Decide whether the MagnaCut knife needs ordinary sharpening, damage repair, or complete reprofiling.

Next, determine the existing edge angle or select a new angle appropriate for the knife. Marking the bevel with a permanent marker is a simple way to check where the abrasive contacts it.

Choose your starting grit according to the condition of the edge. Maintain the selected angle while sharpening from heel to tip, using controlled pressure. Continue until the bevel reaches the apex and a small burr can be detected along the opposite side, then repeat the process from the other side.

A burr is useful evidence that the bevel has reached the apex, but it should not be made larger than necessary. Producing a large burr removes additional steel and creates more material that subsequently needs to be eliminated during finishing. Microscopy of sharpened edges demonstrates how burr formation and removal affect the final apex.

Progress through only the grits necessary to achieve your desired finish, gradually decreasing pressure and alternating sides as you approach the final edge.

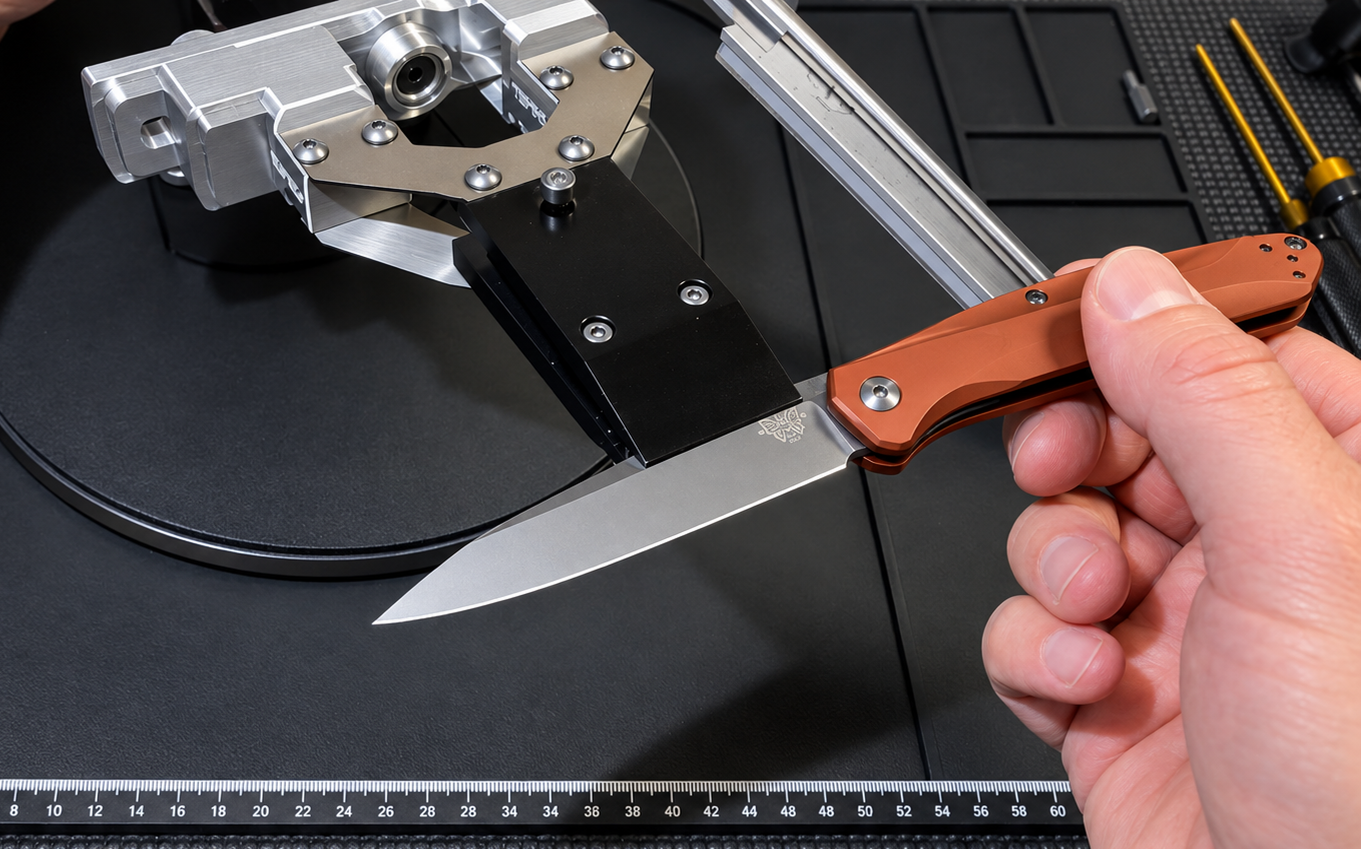

A fixed-angle system such as a TSPROF sharpener can make angle reproduction and bevel consistency easier, particularly when working through multiple grits. The trade-off for that repeatability is additional setup and clamping compared with simple freehand sharpening.

How Do You Deburr and Strop MagnaCut?

Deburr MagnaCut using controlled, progressively lighter finishing strokes. Stropping is optional; when used correctly, it can further refine the apex, but excessive pressure or too many passes can alter the near-edge geometry.

MagnaCut has been reported to deburr relatively easily when appropriately heat treated. As the sharpening process approaches completion, alternating light strokes can progressively minimize the burr instead of repeatedly pushing a large burr from one side to another.

Edge-leading and edge-trailing strokes can affect burr formation differently. Microscopic examination shows that edge-trailing sharpening can promote foil-like burr formation under certain sharpening conditions.

A leather strop with fine diamond or CBN compound can be used after the stones, but stropping is not mandatory. A compressible stropping surface creates some micro-convexity near the apex.

That creates another engineering compromise: stropping can clean and refine the apex, but excessive pressure or unnecessary passes can progressively alter its geometry. Stop when the burr is removed and the edge performs consistently rather than stropping according to an arbitrary number of passes.

Why Isn't My MagnaCut Knife Getting Sharp?

If a MagnaCut knife will not get sharp, first check whether both bevels actually meet at the apex and whether the burr has been completely removed. Inconsistent angles, an overly fine starting abrasive, ineffective stones, excessive pressure, and a remaining wire edge are common sharpening problems.

Inspect the apex under strong light. Areas that still reflect light may indicate dull, damaged, or incompletely apexed sections. If the bevel has not reached the edge, switching to finer stones will not solve the problem; continue sharpening or move to a more efficient abrasive.

If sharpening is taking excessively long, your starting grit may simply be too fine. Switching to a coarser abrasive increases material-removal speed, but you must accept the additional scratch refinement required afterward.

An edge that initially feels extremely sharp but quickly loses that sharpness may still carry a burr or foil edge. Burrs can be surprisingly difficult to detect without magnification.

Also check your stropping technique. Excessive pressure on a compressible strop can alter the geometry near the apex. Once the knife is correctly sharpened, minor loss of bite can often be addressed with a controlled touch-up rather than another complete reprofiling.

How Does MagnaCut Compare With S35VN and S90V for Sharpening?

Carbide-volume figures are based on technical data published by Niagara Specialty Metals for MagnaCut and comparative CPM steels. The table should not be interpreted as a universal sharpening-speed ranking: hardness, heat treatment, edge geometry, abrasive selection, and the amount of steel being removed also affect sharpening.

What Are the Key Sharpening Specifications for MagnaCut?

These are practical sharpening guidelines rather than MagnaCut manufacturing specifications. Angle and grit should always be adjusted for the individual knife, heat treatment, geometry, edge condition, and intended cutting task.

What Is the Composition of CPM MagnaCut Steel?

The nominal MagnaCut composition is published by Niagara Specialty Metals. Its unusual balance of chromium, vanadium, niobium, molybdenum, carbon, and nitrogen was designed to limit chromium-carbide formation while maintaining stainless corrosion resistance and forming hard vanadium- and niobium-rich carbides.

What Is the Best Way to Sharpen MagnaCut Steel?

The best way to sharpen MagnaCut is to match the abrasive and grit to the condition of the knife, use the lowest practical edge angle that remains stable for its intended work, completely reach the apex, and remove the burr with progressively lighter strokes. Diamond and CBN can make the process faster, but neither is mandatory.

MagnaCut's combination of fine carbide structure and relatively low carbide volume means it does not have to be treated as an exceptionally difficult steel simply because it belongs to the premium powder-metallurgy category. Heavy reprofiling benefits from aggressive abrasives, but the price of faster steel removal is additional scratch refinement. Likewise, a lower sharpening angle can improve cutting efficiency, but the edge receives less geometric support. A polished edge offers greater refinement, while a coarser finish may provide more aggressive slicing behavior.

The same principle applies to the sharpening method itself. A guided system offers repeatable angle control but requires more setup, while freehand sharpening is flexible and fast to begin but places greater demands on the user's ability to maintain a consistent angle.

Ultimately, MagnaCut responds best not to one special stone, angle, or grit progression, but to controlled geometry and deliberate abrasive selection. Reach a clean apex, remove the burr completely, stop refining when the desired cutting behavior has been achieved, and use light touch-ups before the knife becomes severely dull. That approach preserves both the performance of the MagnaCut edge and the blade material itself.
